Capabilities

• Engineering / Data Processing



  • AutoCAD – 12 to 2004 Capabilities
  • (4) Solid Works 2017 Stations
  • (2) Color Plotters
  • Adobe Photoshop and Illustrator




• Laser Processing



  • Amada Pulsar LC 2415 Laser
  • Cutting Capabilities: 60 x 144 Sheets
    • 1/4” Aluminum
    • 1/2” Stainless Steel - Clean Cut
    • 1” Mild Steel

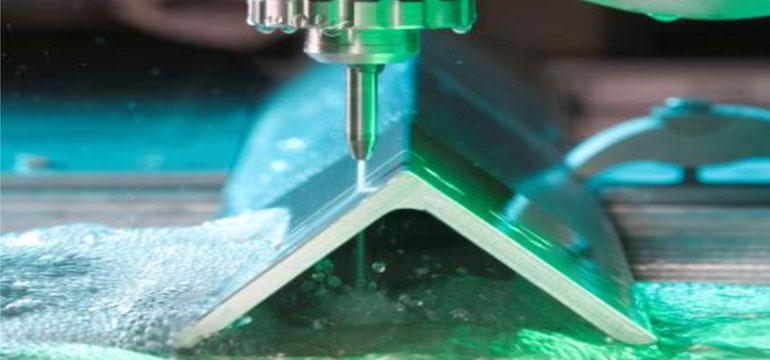

• Water Jet Processing



  • Cuts a variety of materials up to 8" thick
  • 72" x 144" material capacity
  • Reduce waste material
  • Provides a burr free finished edge
  • Reduce machining time as much as 70%
  • Leave no heat affected zone
  • Eliminates costly set-up time




• CNC Milling Center



  • 16 x 26 x 30 VM16 Milltronics
  • 24 x 26 x 54 VM22 Milltronics
  • Vertical Machining Center
  • Cat 40 - 24 Tool Carosel




• Powder Coating



  • 7'-6" x 6' x 20' envelope size
  • Over 200 colors in stock
  • Custom colors available by special order
  • Finishes available: smooth-textured-veined




• Sheet Metal



  • (1) 50 ton, 24" Throat Hydraulic Punches
    • Completely Tooled
  • NC Controlled Milling Machine
  • 20" Drill Press
  • Vertical Band Saw
  • Insertion Press 8 Ton
  • Automated Horizontal Band Saw - 14"x18"
  • Automated Band Saw - 13" x 21"
  • Manual Band Saw - 8" x 16"
  • Hydraulic Notcher - 5 x 5 x 11 gauge
  • Boshert Notcher 8 x 8 -1/4”
  • Sheet Polishing to 36" wide




• Welding



  • (3) 250 AMP Mig Welder
  • (3) 250 AMP Tig Welder
    • Foot & Finger Tip Remotes & Coolers
  • (2) 15 KVA Spot Welders
  • 250 AMP Portable Mig & Tig Welder with Remotes
  • Oxy/Acetylene Torch
  • 60 AMP Plasma Cutter
  • #4 -1/4” Stud Welder Gun




• Shearing / Forming



  • 10’ - 10 Gauge Shear
  • 12’ - 130 Ton and 280 Ton CNC Press Brake with CNC Back Gauge / 3 and 6 Axis
  • 6’ - 60 CNC Press Brake w/ CNC Back Gauge / 3 Axis
  • 8’ - Leaf Brake with 16 Ga. Capacity
  • 4’ - 12 Gauge Box & Pan Brake
  • 3’ - Powered Slip Roll, 14 Gauge Capacity
  • 3’ Slip Roll, 22 Gauge Capacity
  • 5' Roll x 1/4" MS Capacity
  • 10' roll x 14 Guage MS Capacity
  • 2 Hossfeld Tubing Bender Bead and Roll Edge Former
    • 18” Throat - 14 Gauge Capacity
  • Angle Iron Roll with 2 x 2 x ¼ Angle /1 ½ x 1 ½ Square Tube - 1 ½” Round Capacity
  • Madrell Tube Bending: Mild Steel - 3"x.125 wall / Stainless Steel - 3" x .080 wall / Square Tube - 2" x .125 wall
